2. Drawings Improvements

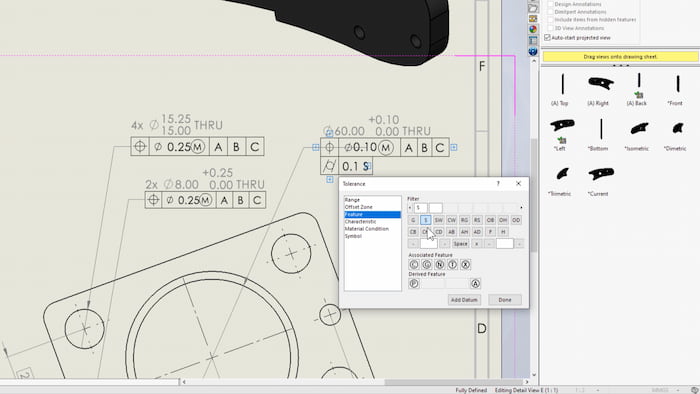

2022 brings a range of drawings enhancements to make detailing easier than ever before. A new in-context toolbar for controlling dimensions has been introduced to drawings, this allows you to easily flip between radial, diameter, and linear dimensions of circular geometry, and there's also a brand new toolset for adding geometric tolerances that makes the whole process faster and more intuitive.
Detailed cut lists are now available for all ‘bill of materials’ types, this provides more flexibility and enables you to easily include weldment data in assembly drawings.
Predefined views have been enhanced so that they can now work with the sheet metal flat pattern views, and if you work regularly with sheet metal you'll also be glad to hear bend lines in drawings have been separated from sketches to provide greater control.
